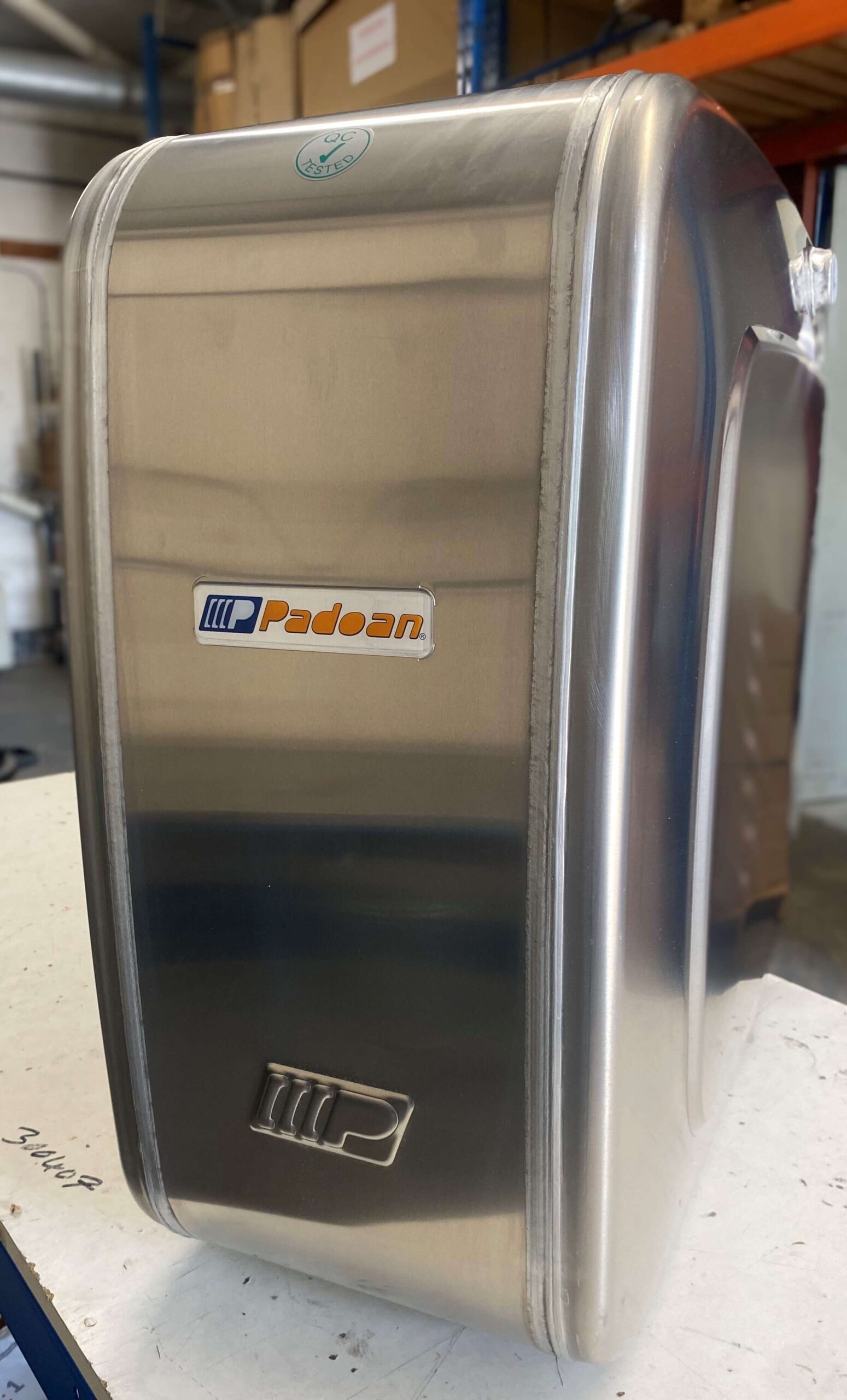

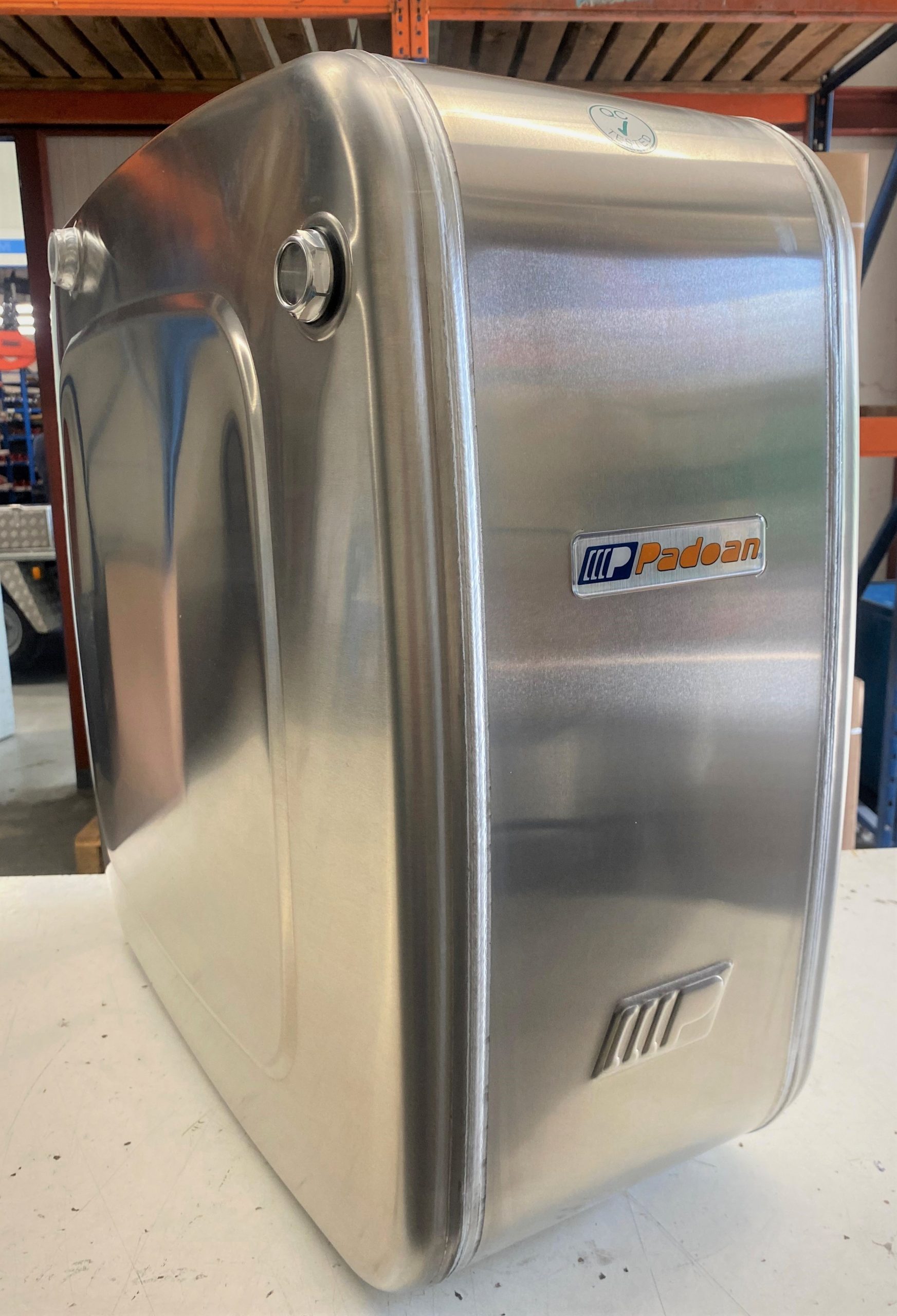

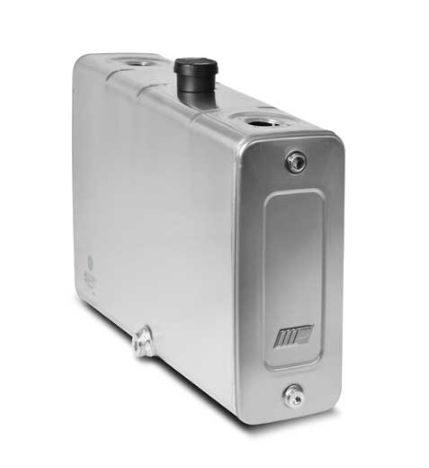

T-Line 85/18 is the new Padoan solution for hydraulic applications installed on commercial vehicles with limited space.

Lack of space on new commercial vehicles is limiting the way in which hydraulic tanks can be installed on vehicles equipped with a wide range of applications.  The benefit of the T -Line is the extremely reduced depth of the tank body, which is only 180mm. The 850 mm height of the tank body allows the standard tanks to be developed with a total capacity of 150, 180 and 200 litres of hydraulic oil.

A shock-absorbing and easy-to-install mounting kit, as well as premium accessories, complete the offer of a solution dedicated to vehicles with extremely limited available space, and at the same time equipped with sophisticated hydraulic applications that require a large volume of fluid for their operation.

The T-Line 85/18, developed through continuous feedback from our customers, aims to provide an effective and efficient solution combining quality, technology and a compact footprint.

Padoan_OIL_85-18_TLINE

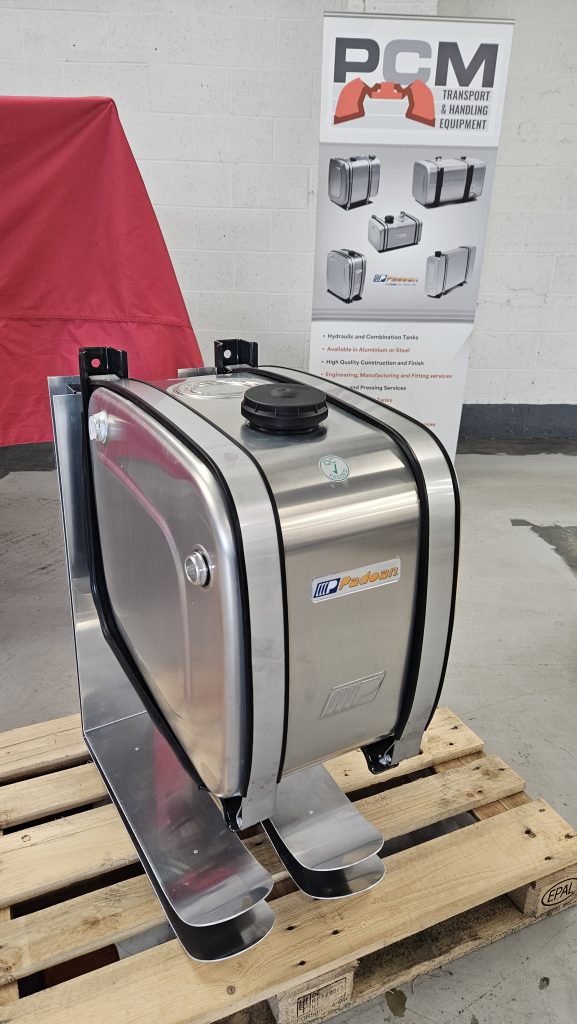

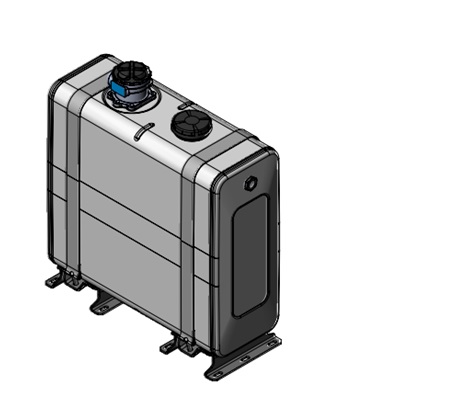

100lt Side Aluminium Tank

Premium 100 lt Aluminium Side  / Chassis Mount Tank c/w EVO Filter Assembly

Code: 40SIDEALI100EVO

40SideAli100EVO Drawing and Dimensions

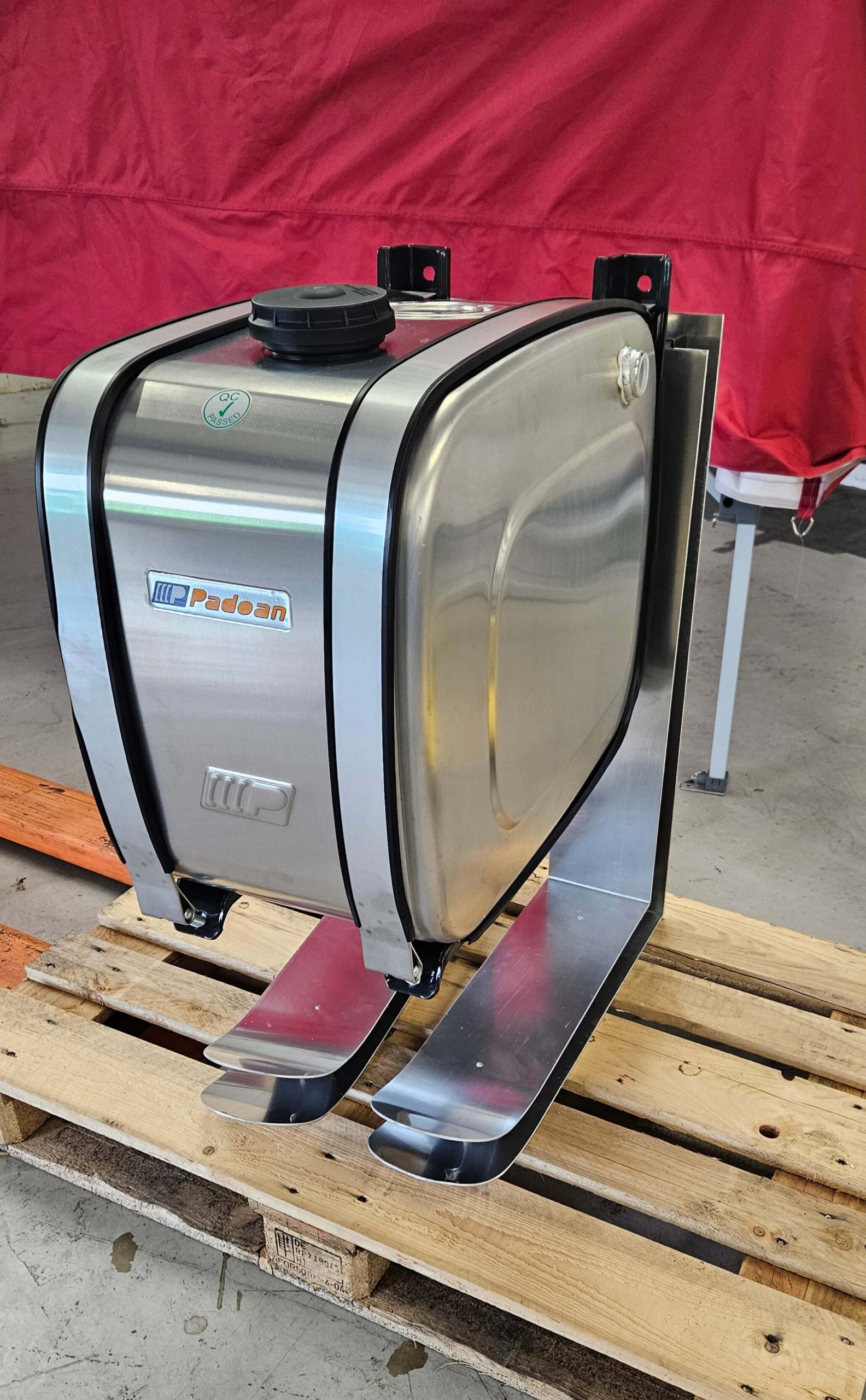

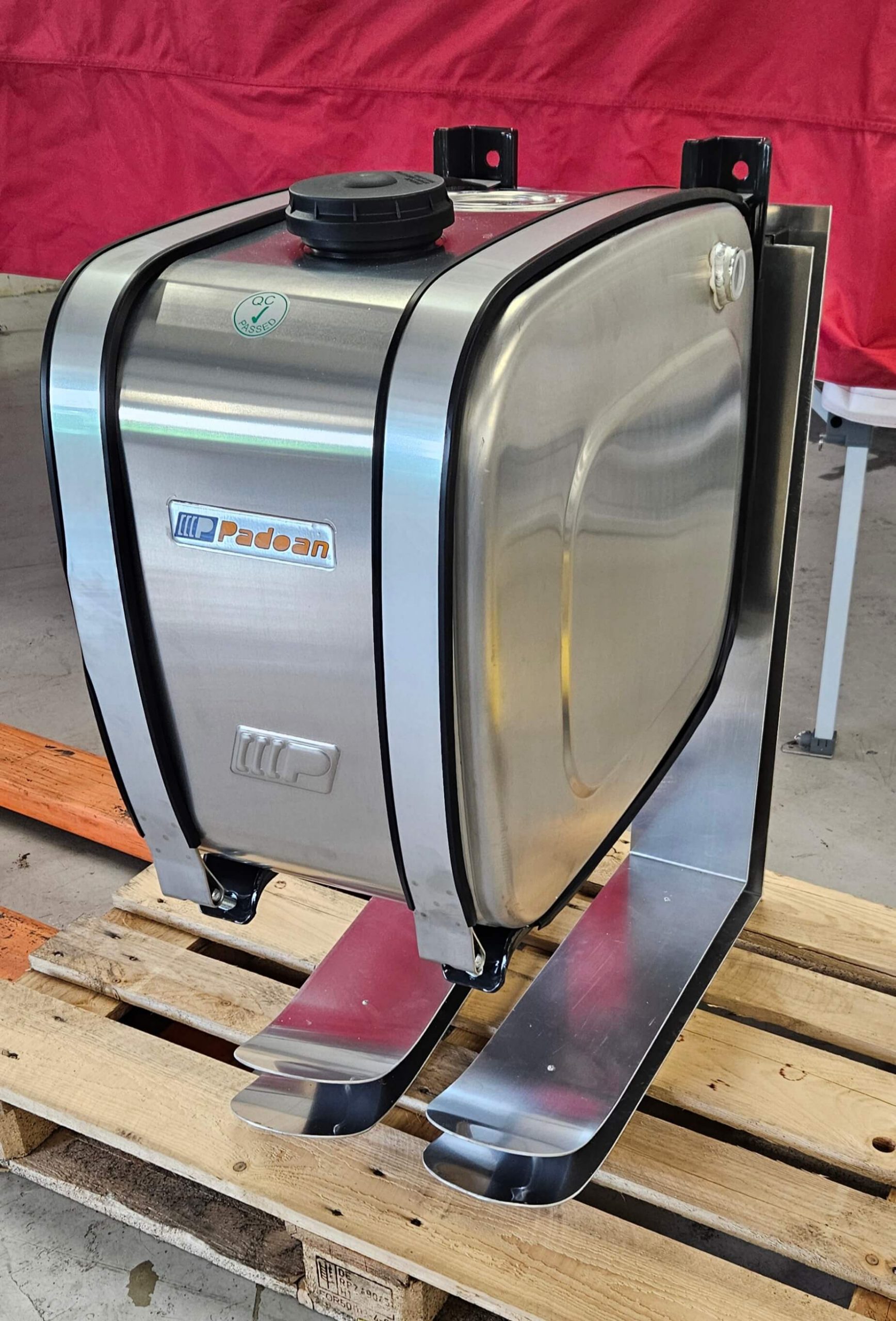

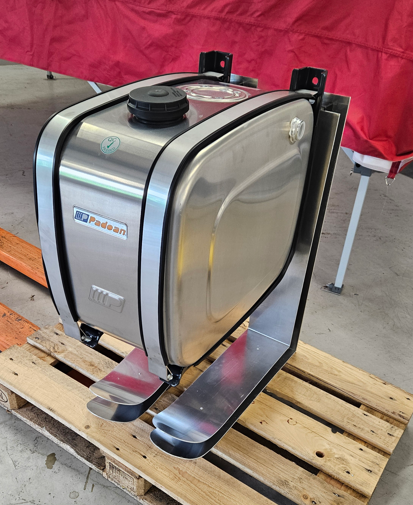

120lt  Aluminium Tank

Aluminium side mount tanks available from stock.

Aluminium offers significant weight saving.

Supplied complete with return filter assy as standard, sight level gauge, filler breather, straps and brackets.

Code: 40SIDEALI120PNCOM

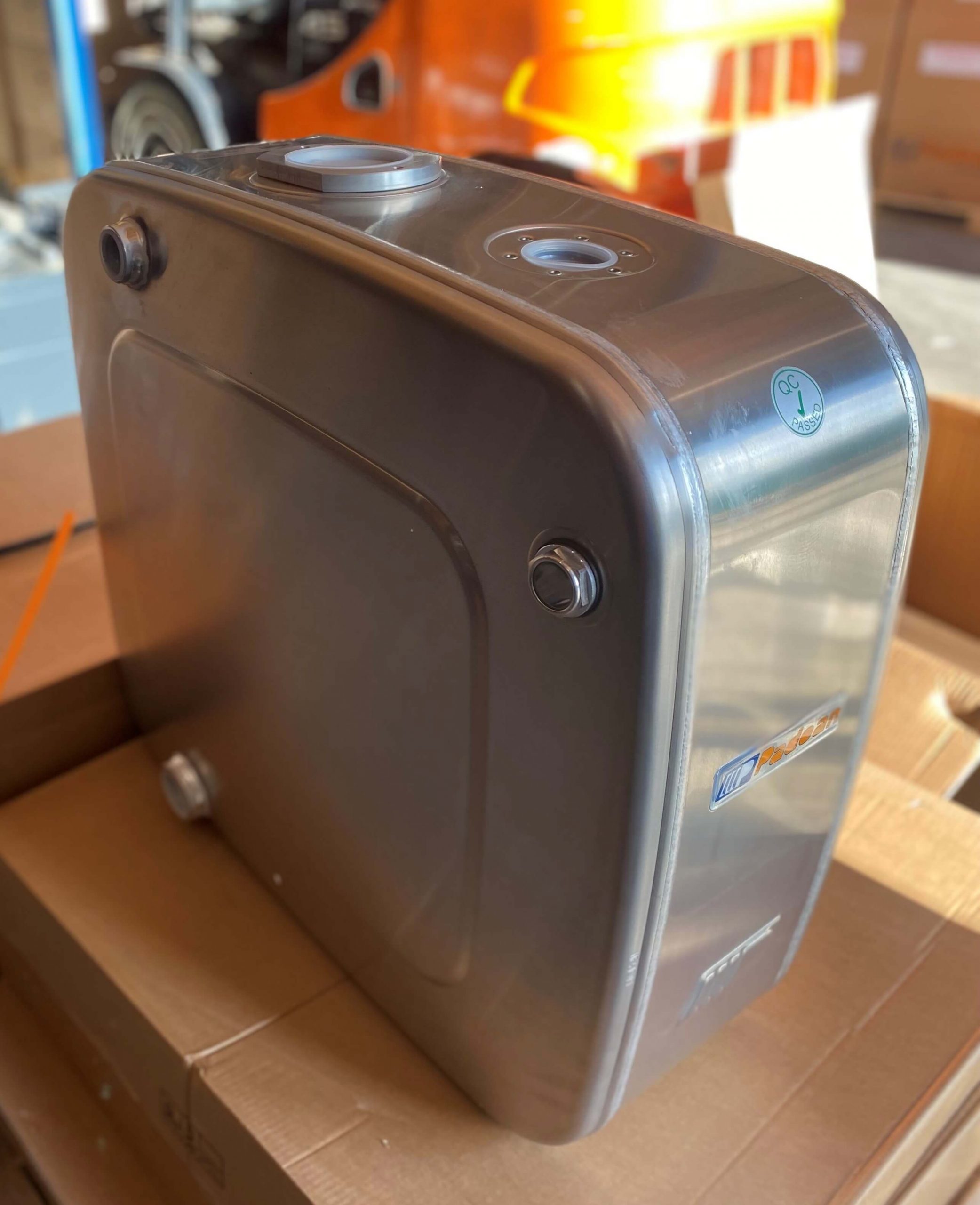

100lt Aluminium Side Tank

125lt Aluminium Side Tank

Aluminium side mount tanks available from stock.

Aluminium offers significant weight saving.

Supplied complete with return filter assy as standard, sight level gauge, filler breather, straps and brackets.

Code: 40SIDEALI125COM

125lt Hydraulic Oil tank diagram/dimensions

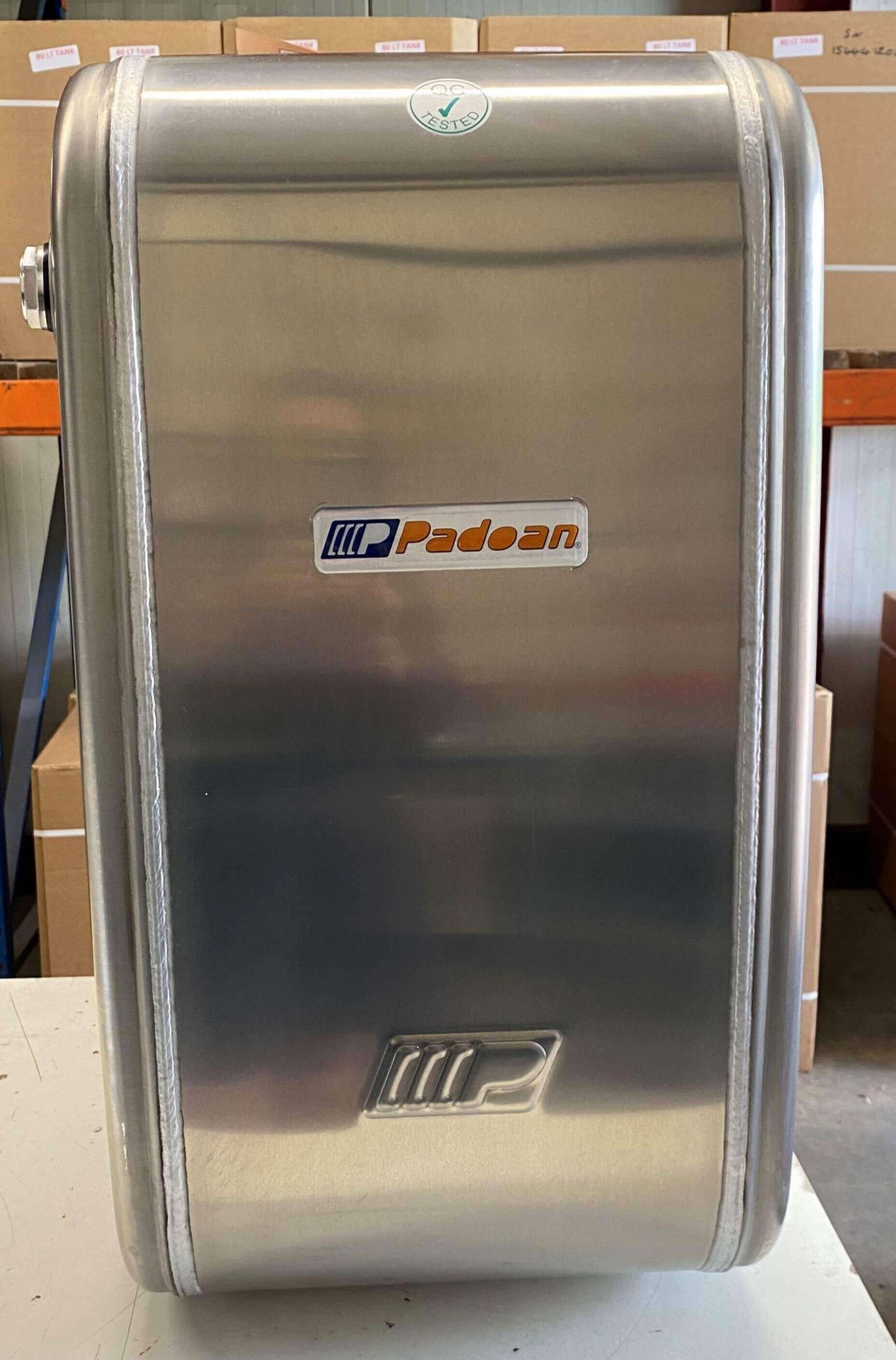

170lt Aluminium Tank

400x700x700mm

Dimensions make this tank ideal for fitment where space is limited

Premium Quality Design and Finish

Tank supplied c/w straps, brackets, return filter assy, filler breather assy and 1 ½\” shut off tap / ball valve included.

Code: 40SIDEALI170COM

40SideAli170PN Drawing and Dimensions

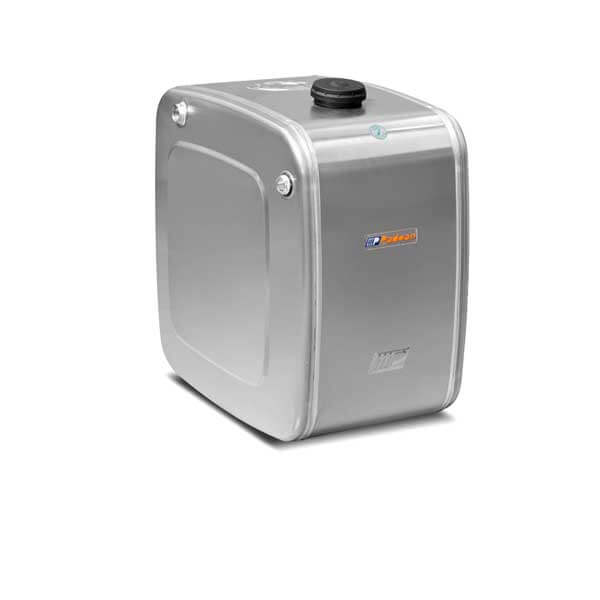

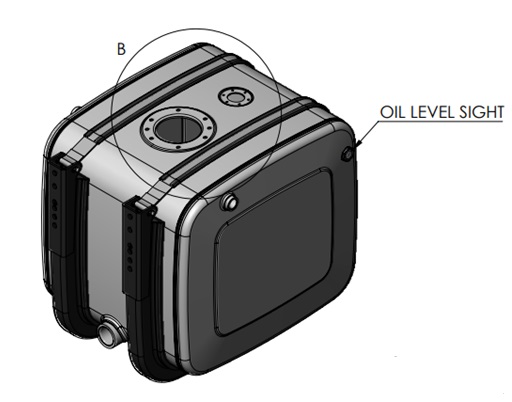

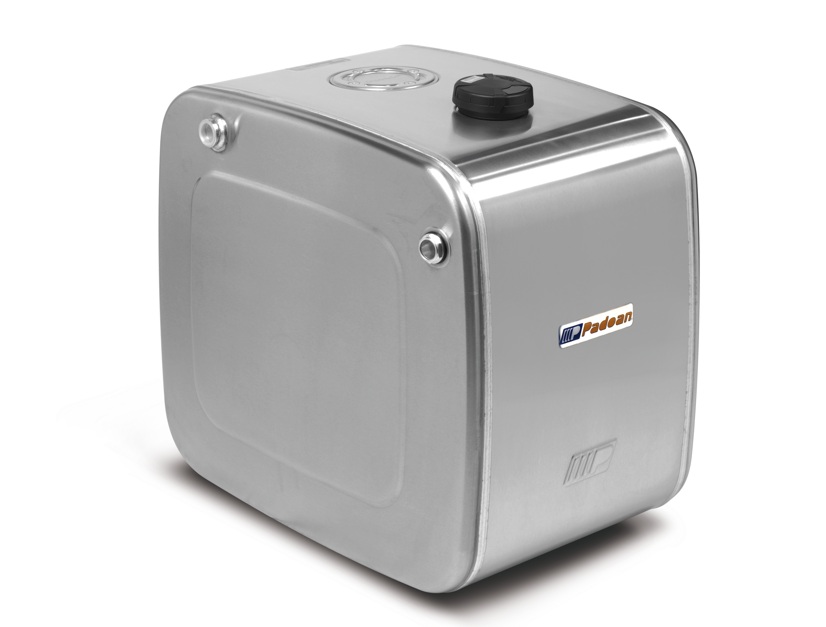

250lt Aluminium Slim Side Tank

250lt Aluminium Slim Side Mounted Tank Available from Stock

600x636x706mm

Code: 40SIDEALI25045PN

Supplied complete with return filter assy, sight level gauge, filler breather, straps and brackets

250lt Aluminium Side Tank

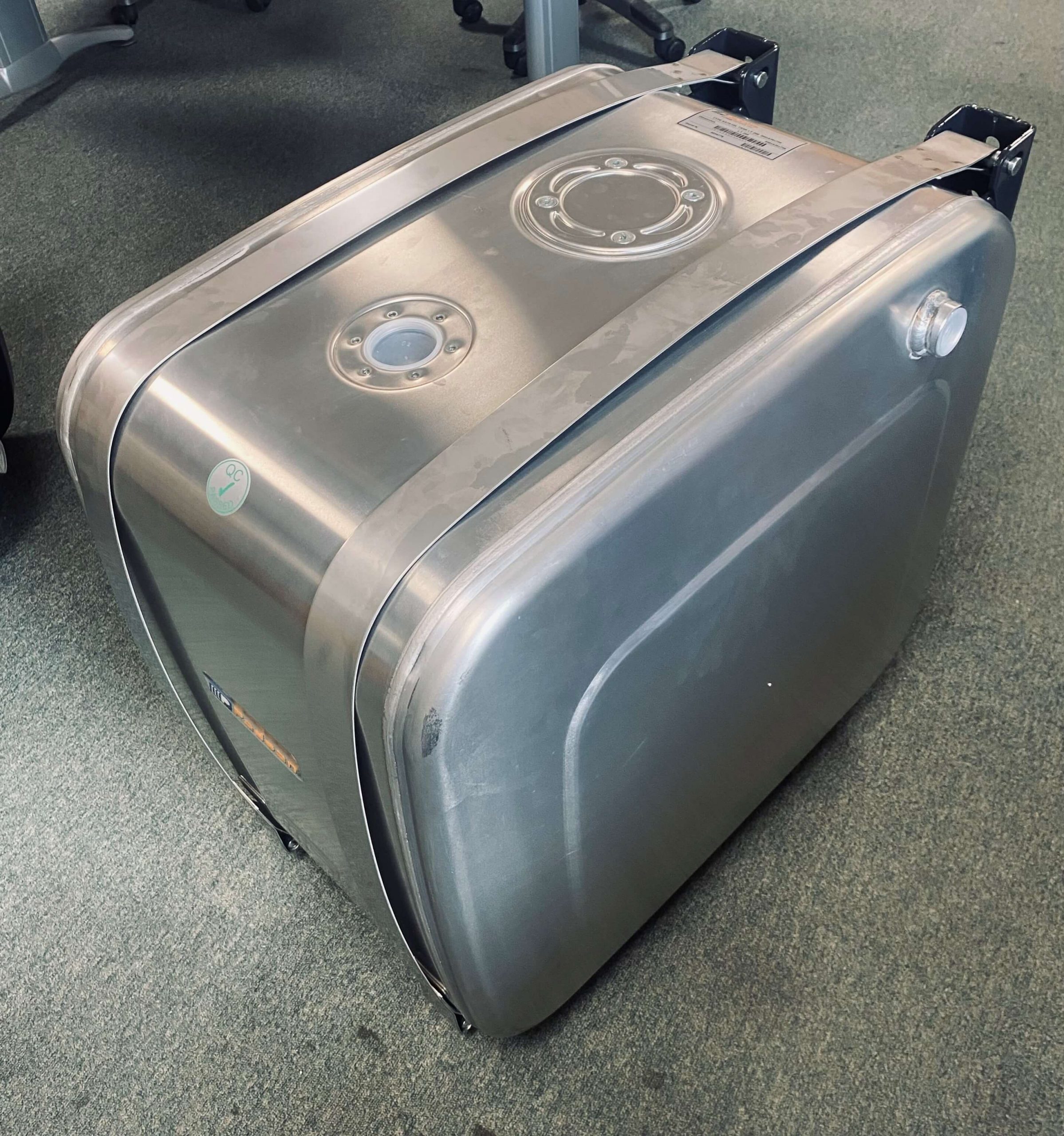

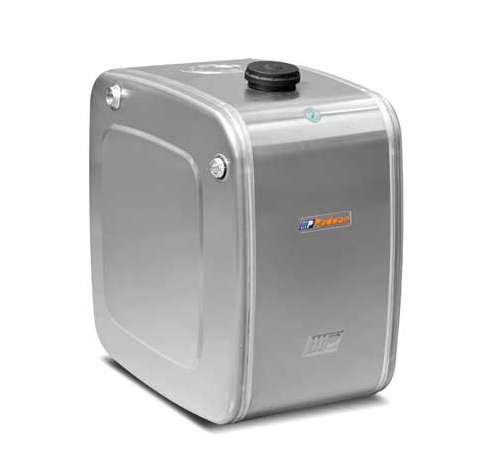

200lt Aluminium Side Tank

200lt Aluminium Side Mounted Tank Available from Stock

706x636x500mm

Code: 40SIDEALI200PPN

Suitable For Bulk tipper and Large Lorry Loader Crane Operation
Supplied complete with return filter assy, sight level gauge, filler breather, straps and brackets

200lt Aluminium Side Tank
